Intelligent electromagnetic flowmeter quotation, in the whole process of electromagnetic flowmeter motor selection, for the intelligent electromagnetic flowmeter quotation is not the key, we must master the three elements of working conditions, accurate measurement of material, temperature, working pressure, followed by the commodity three elements, power supply, installation method, measurement range.

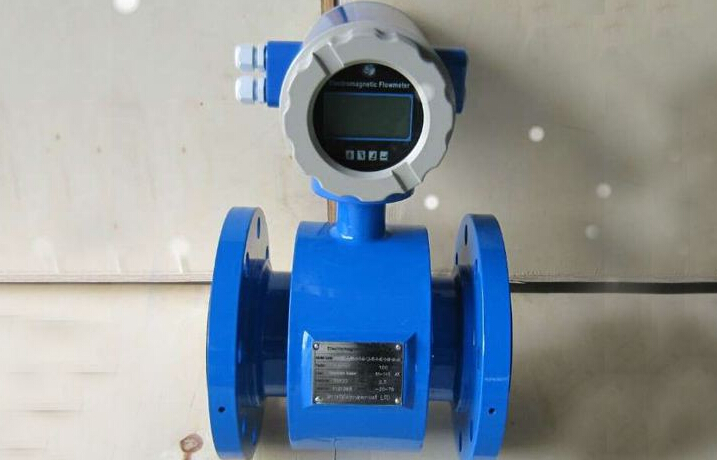

Intelligent electromagnetic flowmeter quotation
Nominal pipe diameter DN10, 15,20.25, 32,40,50,65,80,100,125,150,200,250,300,...
Nominal pressure Mpa0.6, 1.0, 1.6, 2.5, 4.0, 6.3
Process connection flange connection, flange standard: GB/ t9119-2010
Constructed body type (IP65), split body type (IP65 and IP68)
Lining raw materials PTFE (≥DN25), neoprene (≥DN65), F46, polyurethane
Electrode materials: platinum, bare-metal, hardenite, titanium, 316L, tungsten carbide
Accurate measurement tube raw material 304 stainless steel
Shell and flange raw carbon steel (specification), stainless steel plate (non-standard custom)
Fluid temperature ≤160¡æ
Explosion-proof type marks not explosion-proof
Accuracy level 0.5 (within 0.3m/s ~ 10m/s)
Repeatability 0.15%
The range of measurable water flow is 0.05m/s ~ 12m/s
Intelligent electromagnetic flowmeter quote protection level selection
IP65: sprinkler proof, allowing the faucet to spray water on the sensor from all directions, with a water flow of 12.5L/min.The spacing is 3M.
IP68: submersible, sensor working in water for a long time.
The protection grade should be selected according to the specific situation, the sensor of the electromagnetic flowmeter is installed below the ground, if often be invaded bubble, should choose the protection grade of IP68;If the sensor is installed on the right or left side of the road, the protection grade of IP65 should be selected.
Porcelain city Shanghai instruments co., LTD., has more than 30 years of technology accumulation, has a number of national invention, has been reached in many ways even more than the world leading level, such as range than can do 1 0 and the latter, temperature more than 200 c, can bear pressure 1000 bar and so on, can say we are the real benchmarking enterprise of flow meter industry in China.
