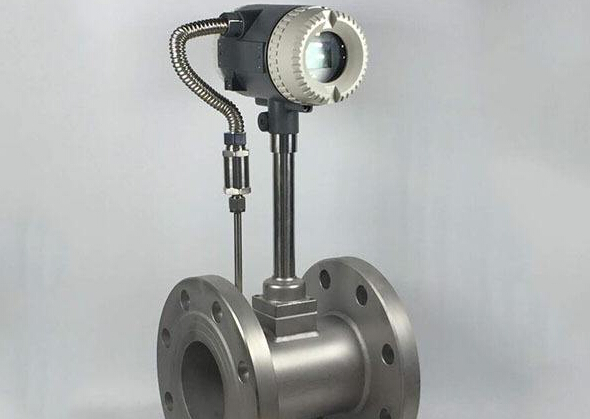

The vortex flow meter is a volume flow meter designed and manufactured according to Karman's vortex flow principle to measure the volume flow of vapor, vapor or liquid, the volume flow of standard conditions or mass flow.It is suitable for measuring the total flow of industrial pipeline medium fluid, such as gas, liquid, vapor and other media.
Key to determine the following points of parameter provisions:
1. Measuring medium.Vortex flowmeter is a kind of rate flowmeter, it USES the basic principle of karman vortex street, when the medium according to the vortex body, will produce a small vortex in the back, according to the number of vortices, can be calculated into the medium water flow, and then calculated into the total flow of the medium.Its rationale determines the type of medium it measures, whether it's a liquid, whether it's a vapor or a vapor.At present, most of the industrial production occasions, such as N2, compressed air, steam, heat conduction oil, etc., are the vortex flowmeter for measurement.
2. Pipeline specifications.Vortex flowmeters can be installed in either tube or plug mode depending on the installation method.For the pipe type, the pipe specification is the same as most other steam flowmeters, small is DN15, large, can reach DN300.If a larger specification is required, plug-in installation can be selected. The basic specification range can reach DN2000, and the caliber of DN2000 or so can be supplied according to the agreement.
3. Measurement accuracy.The accuracy of vortex flowmeters is also of many grades and is divided according to the measuring medium.The vortex flowmeter of pipeline type, if be to measure liquid to get words, measure accuracy can exceed 1.0 class, measure gas to get words, precision can exceed 1.5 class.If the vortex flowmeter is inserted, the accuracy can exceed 1.5 and 2.5 stages.
4. Medium temperature.Generally speaking, it is divided into three categories, namely, normal temperature, moderate and mild temperature.The temperature ranges are -40 ~ 100¡æ(normal temperature), 100 ~ 250¡æ(medium temperature), and 100 ~ 320¡æ(high temperature).If the medium temperature is higher on the spot, such as some superheated steam, an orifice meter can be used to measure it.
5. Nominal pressure.The key is according to the installation method to divide, the following key demand in the market, such as flange card mounting type (2.5mpa), flange connection type (1.0/1.6/2.5mpa), plug-in mounting type (1.6mpa / 2.5mpa / 4.0mpa).
6. Power supply switch power supply.According to the requirements of the current sales market, the key is +12VDC(three-wire monopulse output), +24VDC(three-wire monopulse output and two-wire system current output) 3.6v lithium battery and dual-power supply system.
7. Output data signal.According to the current market requirements, the key voltage frequency monopulse output, two-wire 4-20ma output and HART output.In addition, some places may have to output a large number of digital output, people can also show modbus RS485 communication.
