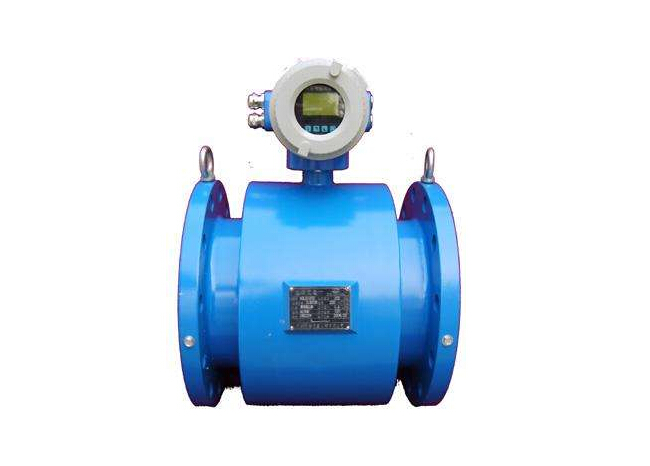

Daily maintenance of electromagnetic flowmeter, electromagnetic flowmeter as a high degree of precision measurement instrument, is a significant innovation in the history of instrument development, it is developed according to Faraday electromagnetic induction law, the length of its working life and whether we can correctly maintain and maintain a considerable relationship.It is developed according to Faraday's law of electromagnetic induction. The basic working principle is that the measured conductive medium cuts the magnetic field lines of force in the magnetic field. The induced electromotive force will be generated in the conductive medium.
Daily use and maintenance:
1, zero check - the manufacturer calibration, zero has been set, the use of fiber only need to check, the method is to close the sensor/downstream valve, stop the flow but the medium is full of sensor, power for 15 minutes, the converter should automatically set zero, if not, the corresponding adjustment.
2. Polarity test of output signal -- for the sensor with unidirectional flow measurement, the upper/lower direction should be installed in accordance with the arrow mark on the sensor housing.If it is a sensor capable of two-way flow measurement, such as the VUB,MT900, it should be energized when the service conditions are met. When the signal of the converter is shown as +, the polarity is correct.If the - sign is displayed, the shifted excitation cable is connected wrong, the excitation should be interchangeable with two wires.In addition, it is necessary to check whether the limit of the rear instrument is correct.
3, full scale range setting - for the variable range type electromagnetic flowmeter with output indication, when the measuring system is put into use, the range can be changed by changing the range switch/potentiometer or the range fluctuation switch according to the requirements, and the change result can be displayed on the instantaneous flow number of the converter display panel.The advantage is that the measurement accuracy is not affected when the range is changed.
For solid range type electromagnetic flowmeters, * send the manufacturer to change the range.
After the above work, pay attention to the consistency between the input signal of the rear instrument and the output signal of the electromagnetic logic (0-10 ma or 4-20 ma).It can be put into normal operation.
