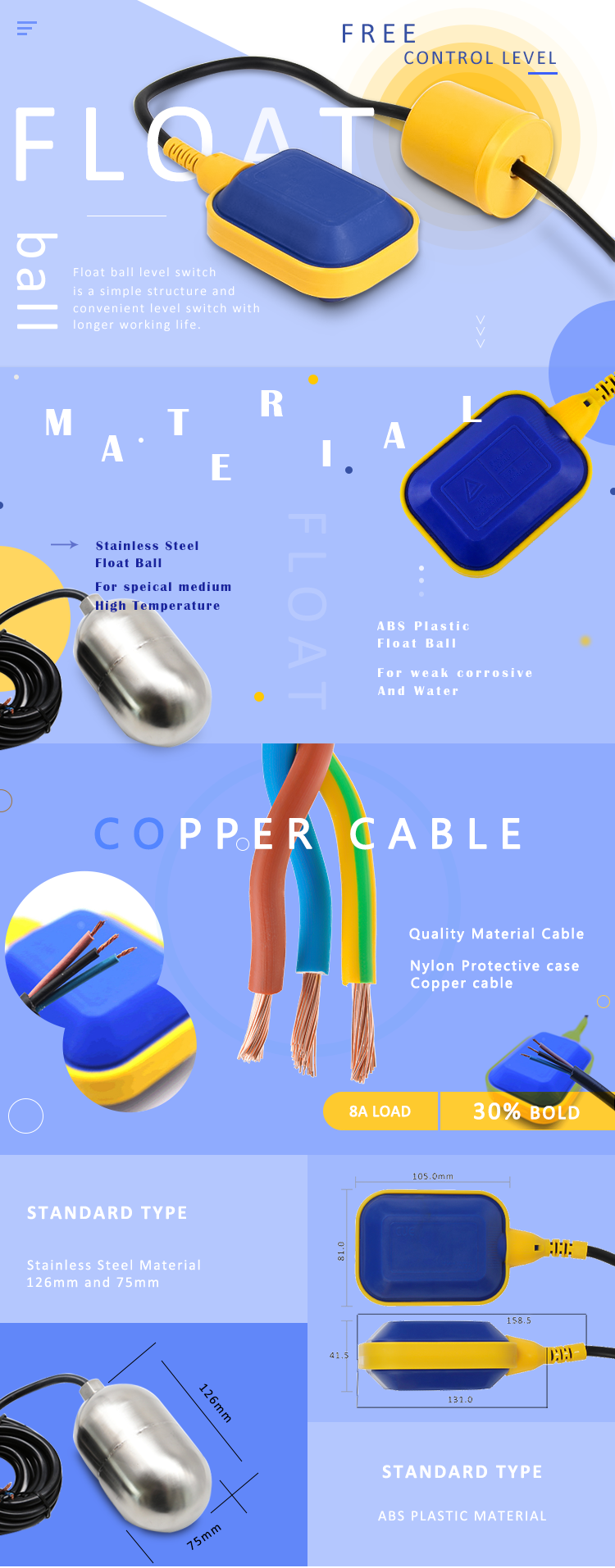

CX-FLM-TEK-1 Key Cable float level switch
Application :
1,Hydropower industry: the set of wells ,water wells ,roof drainage ,living water tower ,storage tank ,forebay water level control and alarm .
2,Drain industry : mixture pool of water plant ,sand filter tank ,settling tank ,water intake ,storage tank ,water tower’s level control and alarm .
3,Wastewater treatment plant’s digester primary sedimentation tank ,balance tank , cesspool ,exposed gas tank ,grille bar pollution.
Technical data :
Working voltage :250V¡«380V
Working current :10(8A)¡«10(4A)
Working temperature :0¡«80¡æ
Power life :1×100000 times
Machine life :5×100000 times
Cable length :3m 4m 5m 10m etc.. And can customize according to requests .
Installation :
1¡¢Use the black and blue wire .
When the float is on the level surface , the contact is under the obstructed status , when the float is under the water ,the contact is turn-on status .
2¡¢Use the black and yellow wire .
When the float is on the level surface , the contact is turn-on status ,when the is under the water ,the contact is the obstructed status .
3¡¢Installation of fixed hammer
The level control height is decided by the cable length of cable float level switch and the position of the hammer .
The way of install the hammer :
1¡¢ Displace snap ring of the plastic non-cone terminal ,and set to the appropriate place on the cable .
2¡¢ Then let the cable penetrate the terminal of the plastic cone , the snap ring set on the cable limit the position of the hammer .
3¡¢ Finally ,fixed the cable outside of the container .Let the cable connect to control box and avoid using middle joint. If it need joint ,forbid to put the joint in the water .
(Note :The snap ring can not be removed , the cable can penetrate the cone directly . Then use old bare wire to wrap around the correct position of the cable to lock the plastic hammer .)
