The Magnetic Level meter
A.[Features of Magnetic Level meter]

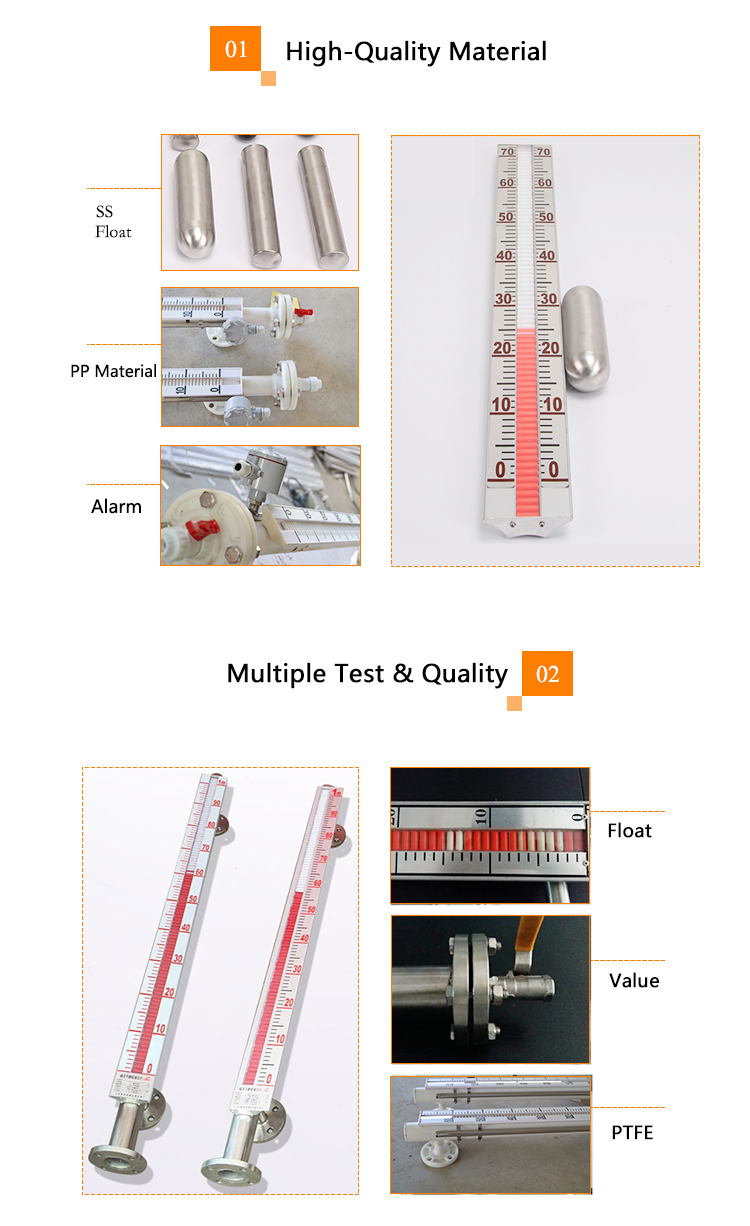

Easy Reading
The Water Tank Level meter with red indicator,so it's easy reading the water level;
Lower Cost For You
The Water Tank Level meter with lower cost compared with the radar or ulreasonic level meter;
High Standard Working conditions
The Water Tank Level meter with 350¡æ max temperature and 9.6Mpa max pressure for reference;
Easy Installation
The level meter with three type installation:top,bottom and side mounted for you.
B.[Parameters]
| Water Tank Level meter---Basic production informance | |
| Range | 0~3 meters |
| Material | M1-SS304 |
| M2-SS316L | |
| M3-UPVC | |
| M4-UPP | |
| M5-PTFE | |
| Output | AH-Upper alarm |
| AHL-Lower alarm | |
| AHL-Upper and lower alarm | |
| Installation | S-side-mounted |
| T-top-mounted | |
| L-low-mounted | |
| Sensor Temperature | Normal:-10~200¡æ |
| M-max temperature:-10~350¡æ | |
| PArameter | Material | Range | Tem(¡æ) | Pressure | Density | Viscosity |
| Standard | 304 | 300~8000 | -20~150¡æ | 0~2.45 | 0.5~2 | ≤0.04 |
| H-pressure | 300~8000 | -20~150¡æ | 2.45~9.6 | 0.5~2 | ≤0.04 | |
| H-temperature | 300~8000 | -20~350¡æ | 2.45~9.6 | 0.5~2 | ≤0.04 | |
| Low-tem | 300~2500 | >-40¡æ | 0~2.45 | 0.5~2 | ≤0.04 | |
| LPG | 300~15000 | -20~150¡æ | 0~2.45 | 0.45~0.7 | ≤0.04 | |
| Corrosive proof | 316L | 300~8000 | -20~150¡æ | 0~2.45 | 0.5~2 | ≤0.04 |
| Corrosive proof | PP | 300~5000 | -20~100¡æ | 0~0.6 | 0.5~2 | ≤0.04 |
| Corrosive proof | U-PVC | 300~5000 | -20~60¡æ | 0~0.5 | 0.5~2 | ≤0.04 |
| Corrosive proof | ABS | 300~5000 | -20~120¡æ | 0~0.6 | 0.5~2 | ≤0.04 |
| Corrosive proof | 316pipe | 300~15000 | -20~100¡æ | 0~1.0 | 0.5~2 | ≤0.04 |
| Corrosive proof | PE | 300~5000 | -20~40¡æ | 0~0.6 | 0.5~2 | ≤0.04 |
| Warming type | 304 | 300~15000 | -20~150¡æ | 0~2.45 | 0.5~2 | ≤0.05 |
| H-viscosity | 304 | 300~8000 | -20~150¡æ | 0~2.45 | 0.5~2 | ≤0.05 |
| Sanitary | 304 | 300~8000 | -20~150¡æ | 0~1.6 | 0.5~2 |
≤0.05 |
