A.[Features of Turbine Flow Meter]

Prefessional flow meter for water

For water,the turbine flowmete with large flow ratio and higher accuracy.

Achieved The Dosing Function

The flowmeter with high accuracy and output,With displayment can achieve the Dosing function.

The High Accuracy

The mini water flow meter with three kinds accuracy,The 1%,0.5%,0.2%,The standard type is 1.0%

The Min Size

The min size is DN2mm,the min flow range is 0.03m3/h

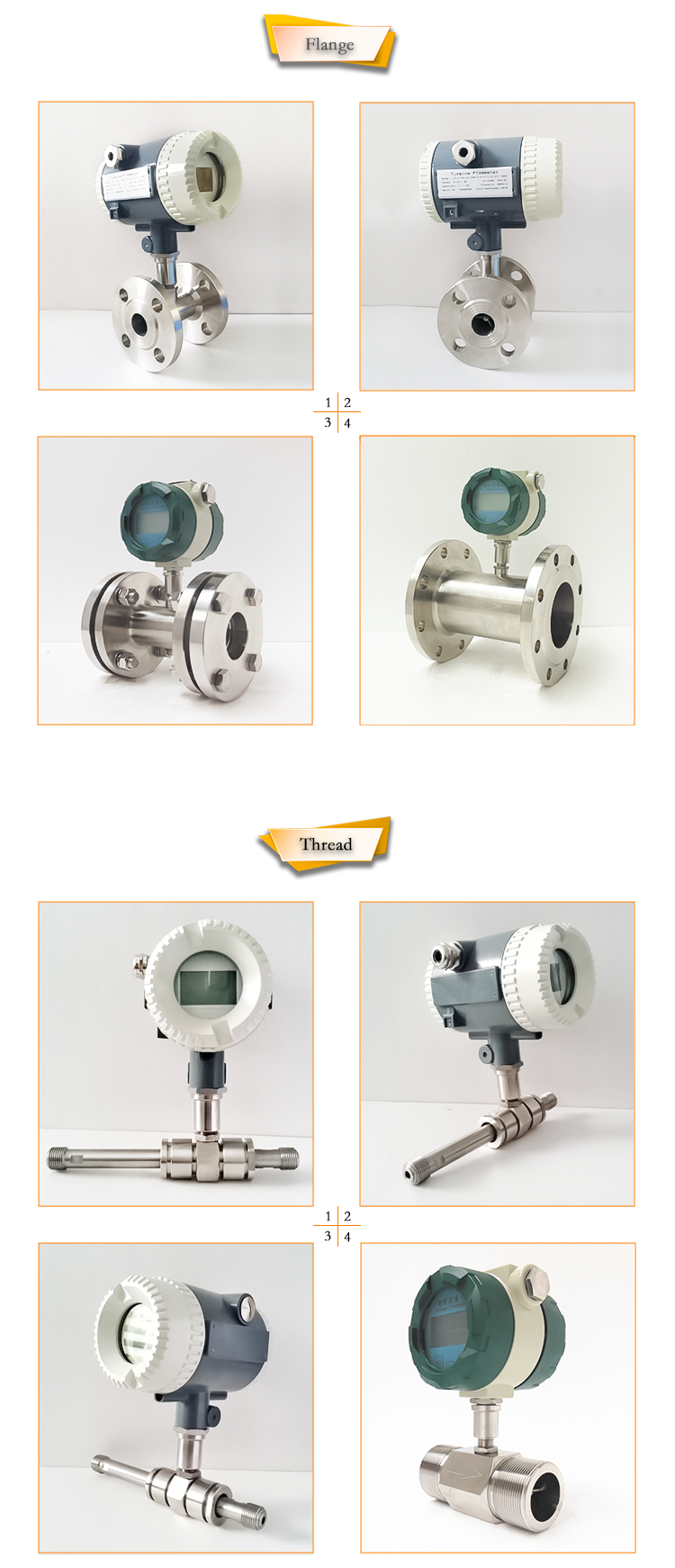

The Variety connection

The alcohol flow meter with flange ,thread and clamp on type connection for you reference.

The Application of beer flow meter

Dosing industry,water industry,high pressure industry and Hudraulic system.

B.[Parameter]

C.[Application]

•  For water treatment;
• Dosing control;
• Chemical industry;
• High pressure and Hydraulic system;
•
• Basic parameters:


  CX-LTFM	□□□	□	□	□	Description
  Type	□				Basic type, +5-24 DVC power supply,
  	B				4 ~ 20mA two-wire current output
  	A				Battery-powered local LCD indicator
  	C				Local LCD indicator/4~20mA two-wire current output
  DN(mm)		4			4mm, 0.04 ~ 0.25m3 / h
  		6			6mm, 0.1 ~ 0.6m3 / h
  		10			10mm, 0.2 ~ 1.2m3 / h
  		15			15mm, 0.8 ~ 8m3 / h
  		20			20mm, 0.6 ~ 6m3 / h
  		25			25mm, 1 ~ 10m3 / h
  		32			32mm, 1.6 ~ 16m3 / h
  		40			40mm, 2 ~ 20m3 / h
  		50			50mm, 4 ~ 40m3 / h
  		65			65mm, 8 ~ 80m3 / h
  		80			80mm, 10 ~ 100m3 / h
  		100			100mm, 20 ~ 200m3 / h
  		125			125mm, 25 ~ 250m3 / h
  		150			150mm, 30 ~ 300m3 / h
  		200			200mm, 80 ~ 800m3 / h
  Explosion					non-explosion-proof type
  			B		Explosion-proof type
  Precision grade				B	1% accuracy

  For DN4-DN40, process connection is thread type, Max pressure is 4.0Mpa.
  For DN50-DN200, process connection is flange type. Max.pressure is 2.5Mpa;
  For DN4-DN10, sensor was equipped with straight pipe and filter.
  For sensor over DN15, straight pipe can be equipped per request.

  (2) Medium temperature: -20 ~ +120 ℃
  (3) the ambient temperature: -20 ~ +55 ℃
  (4) Power supply: Voltage: +5-24 VDC, Current: ≤ 10mA
  (5) Transmitting distance from sensor to display instrument up to 1000m.




  DN(mm)	L(mm)	H(mm)	G	L＇(mm)	D（mm)	d(mm)	Holes
  4	275	145	G1/2	215
  6	275	145	G1/2	215
  10	455	165	G1/2	350
  15	75	173	G1
  25	100	180	G5/4
  40	140	178	G2
  50	150	252			Φ125	Φ18	4
  80	200	287			Φ160	Φ18	8
  100	220	322			Φ180	Φ18	8
  150	300	367			Φ250	Φ25	8


•
