vortex flow meter price

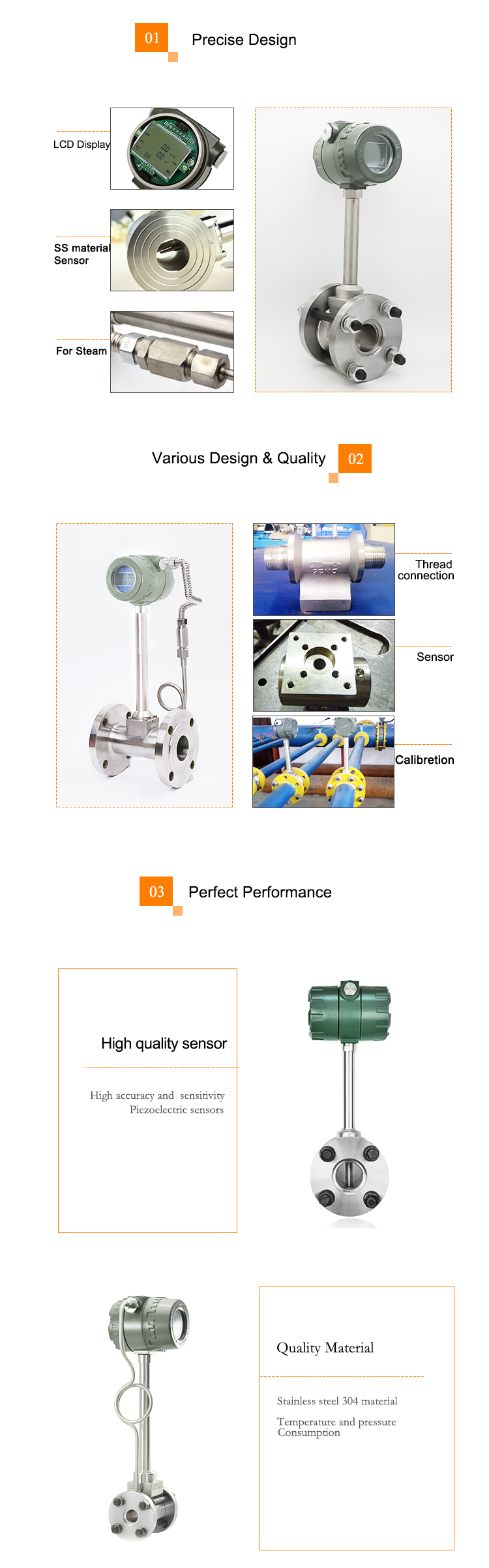

A.[Features of vortex flow meter]

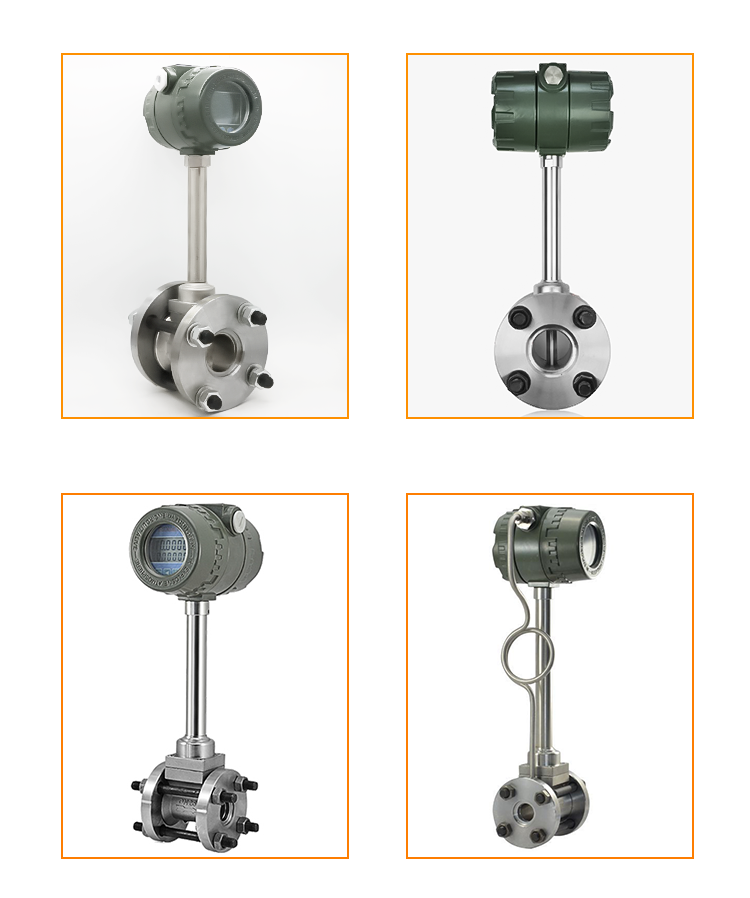

Various medium of steam vortex flow meter
The flow meter could test liquid,gas and steam.
Professional flow meter for steam
Beacuse of the high temperature,the steam vortex flow meter with temperature and pressyre consumption.The highest temperature is 250¡æ;
Various power supply for you reference
The power supply is 12~24VDC and battery supply,but the battery flow meter can not provide any output;

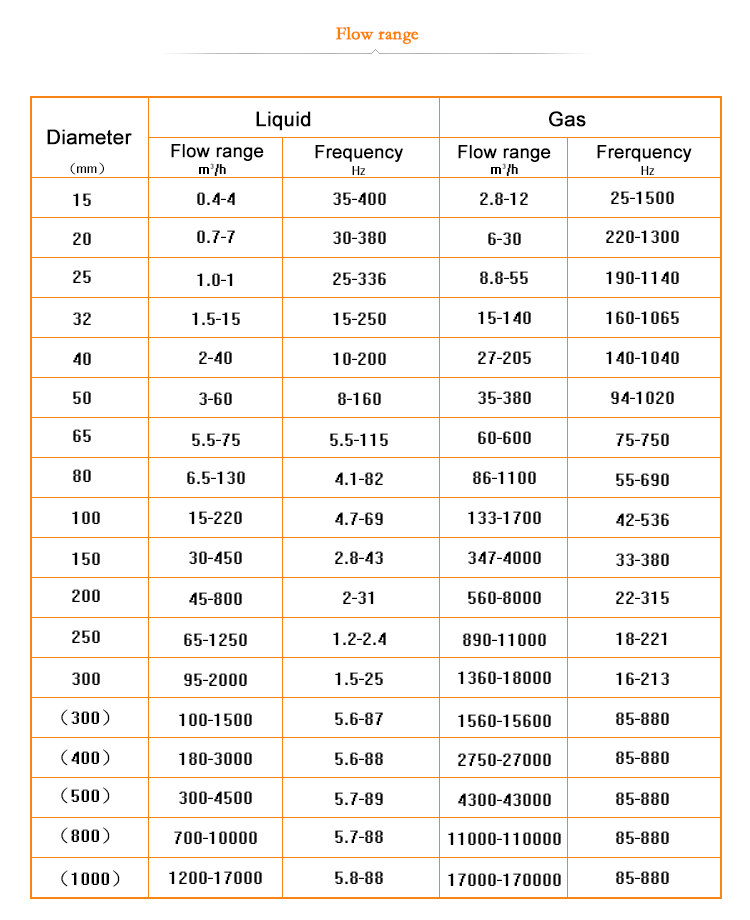

Widely flow range and large flow ratio
The diameter is from DN15 to DN1000 (DN200~1000 insert type)
Srable signal and performance
Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering.
B.[Parameter]
| Production Name | steam vortex flow meter |

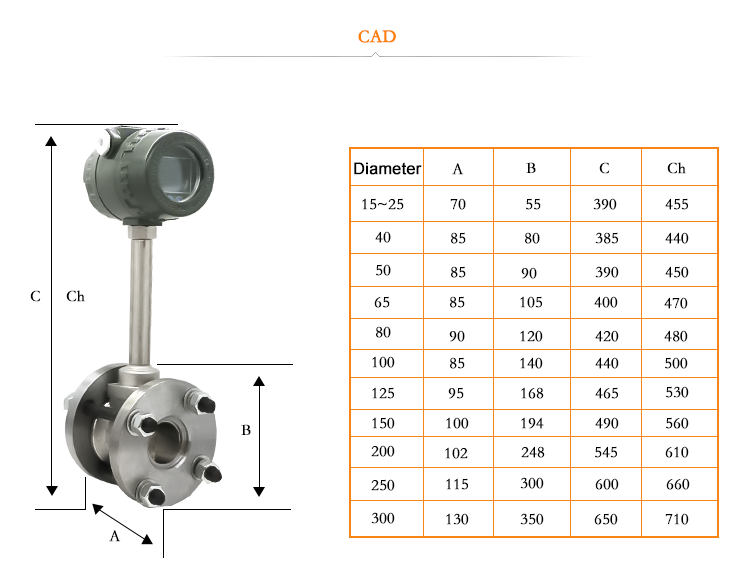

| Diameter | 15,20,25,32,40,50,65,80,100,150,250,300,(300~1000) |
| Pressure | DN15~DN200(4.0Mpa) DN250~DN300(1.6Mpa) |
| Temperature | Piezoelectric:-40~60¡æ Capacitive:-40~300¡æ |
| Material | Stainless steel material |
| Vibration acceleration | Piezoelectric:0.2g Capacitive:1.0~2.0g |
| Accuracy | 1.0%FS;1.5%FS; Insert type:2.5%FS |
| Flow ratio | 1:6~1:30 |
| Power supply | Flow sensor:12VDC/24VDC ;Transmitter:12 24 VDC Battery:3.6V |
| Output | Pulse or 4~20mA Output ;battery supply can not provide any output |
| Pressure loss | Standard:Cd≤2.4 |
| Explosion | Exd ¢òCT2T~5T GE or Exd ¢òCT2~CT5 |
| Protection | IP65 or IP68 |
| Medium | Gas;liquid or steam |
| Distance | Three wires pulse output≤3000mm;Two wires current output(4~20mA) |
